Reliable fit testing for elastomeric respirator programs.
- Accurate CNC quantitative testing recognized by OSHA, ANSI, and CSA
- Four ways to manage your data, including cloud sync
- 3-year warranty, 50% longer than the competition
Straightforward Fit Testing. No Unnecessary Complexity.

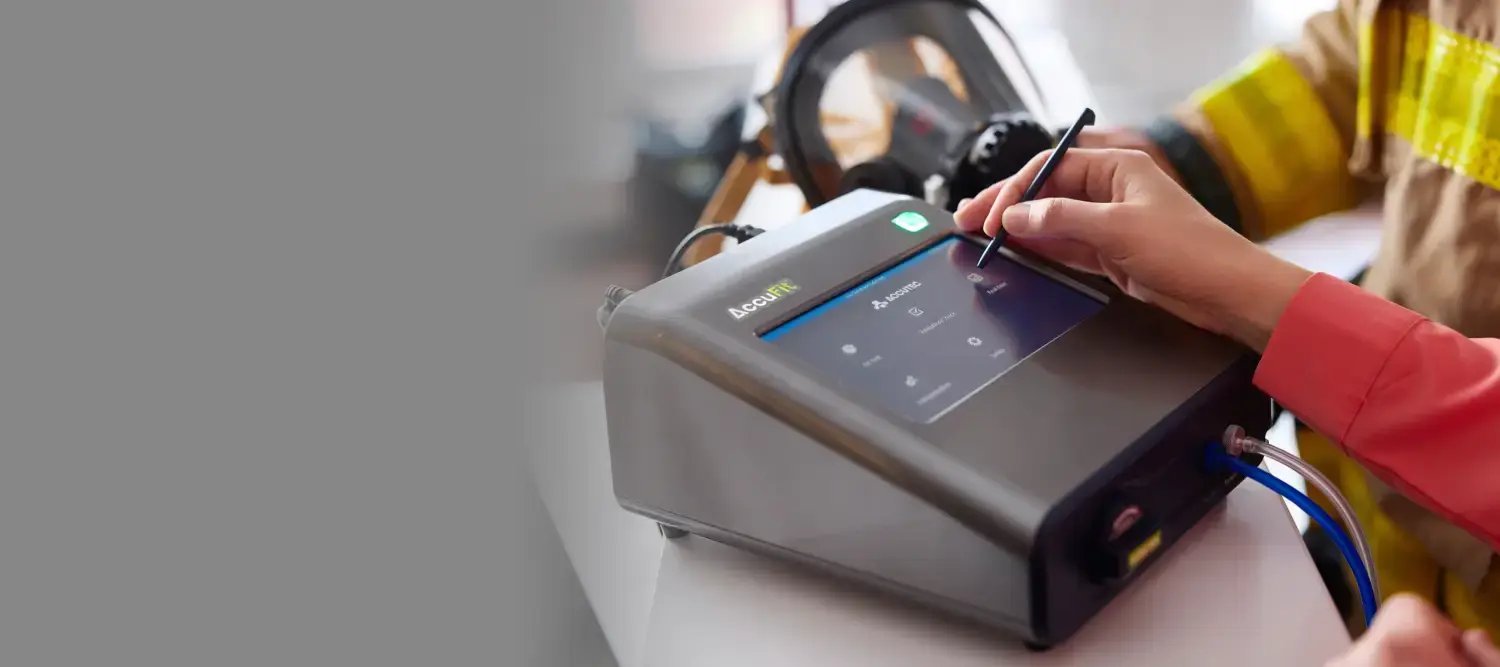

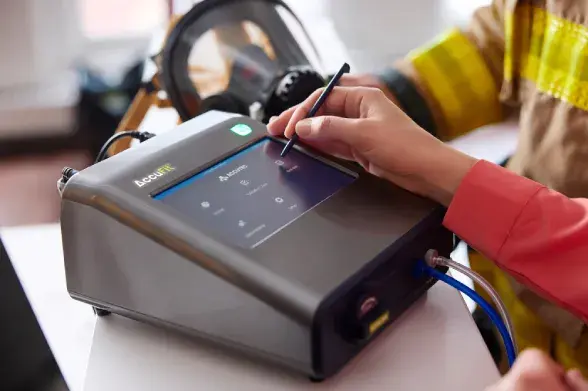

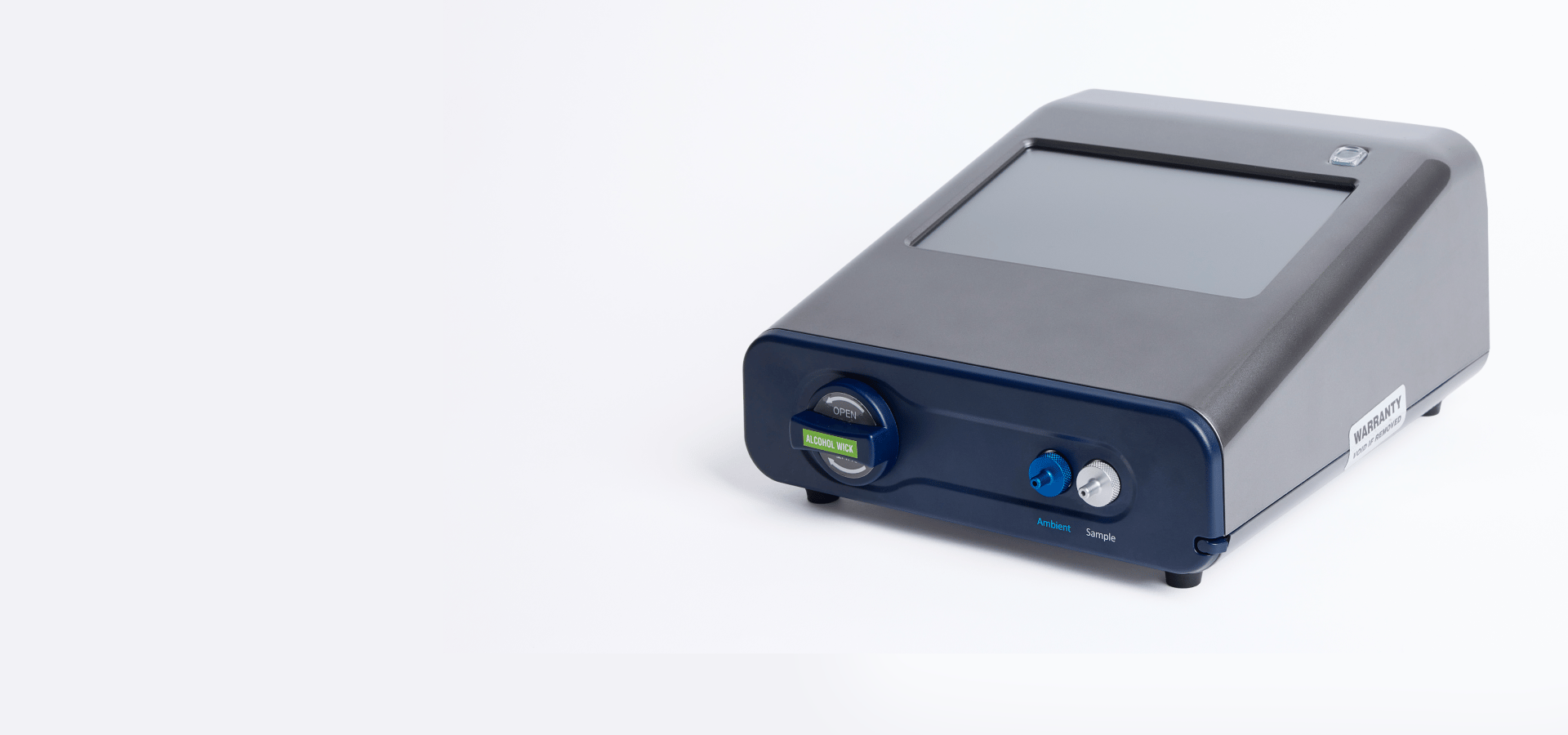

The AccuFit™ delivers accurate, OSHA-recognized quantitative fit testing for elastomeric respirator programs. Built-in touchscreen, standalone operation, and flexible data management mean your program runs on your terms.
- Accurate CNC quantitative testing recognized by OSHA, ANSI, and CSA
- Four ways to manage your data, including cloud sync
- 3-year warranty, 50% longer than the competition
Reliable by Design. Ready When You Are.
- Full and half-face elastomeric respirator testing
- Fast OSHA 2019 Protocol, approximately 2.5 minutes per test
- Built-in 7-inch color touchscreen, no computer required
- Built-in WiFi, no dongle needed
- Operate multiple units simultaneously from one tablet
- Four data options: USB, internal SD card, PC software, or cloud sync
- 3-year warranty, 50% longer than the competition
Technical Specifications
| Specification | Detail |
|---|---|
| Concentration Range | 0 to 100,000 particles/cm³ |
| Particle Size Range | 0.02 to 1 µm |
| Flow Rate | Sample: 100 cm³/min / Total: 700 cm³/min |
| Temperature Range | Operation: 15-35°C |
| Fit Factor Measurement | Direct measurement of fit factor (Cout/Cin) |
| Alcohol | 99.5%+ reagent grade isopropyl |
| Display | 7-inch Color Touch Screen, Hi-Visibility |
| Power Supply | AC Adapter, 110-220 Vac, 50-60 Hz UL/CSA/CE |
| Case | Rugged Case Included, IP67 Rated |
| Inlet Ports | Ambient (Left, Blue), Sample (Right, Silver) |
| USB Ports | 3 (1 Device, 2 Host) |
| Ethernet Ports | 1 |
| WiFi | Enabled |
| Languages | English, French, German, Spanish, Portuguese, Japanese, Chinese |
| Warranty | 3 Years on Workmanship and Materials |
Respirator Compatibility
AccuFit™ quantitative fit testers are OSHA, ANSI, CSA, and HSE protocol compliant for testing tight-fitting respirators.
| Respirator Type | Supported |
|---|---|
| Full Face | Yes |
| Half Face | Yes |
| NIOSH Series 99 | Yes |
| NIOSH Series 100 | Yes |
| N95 | No |
| FFP1 | No |
| FFP2 | No |
| FFP3 | Yes |
AccuFit™ Kit Includes
- AccuFit™ Instrument
- Rugged hard-sided carrying case
- 99.5% Reagent Grade Isopropyl Alcohol
- USB and Ethernet Cables
- AC Adapter
- Hose Sampling Kit
- HEPA Filters
- Factory Calibration Certificate
- Operation and Service Manual
Calibration Services
Regular calibration keeps your AccuFit™ accurate, compliant, and performing as designed. Accutec recommends annual calibration in accordance with OSHA 29 CFR 1910.134.
What's Included
- Comprehensive instrument inspection and cleaning
- Full preventive maintenance
- Calibration to an NIST-traceable standard
- NIST-traceable calibration certificate
- Warranty repairs covered at no additional charge for instruments within their 3-year warranty period
Warranty Coverage
3 Years on Workmanship and Materials
Coverage Includes
- Defects in materials under normal use and service
- Workmanship-related failures under normal use and service
Not Covered
- Damage from misuse, neglect, or improper handling
- Damage from failure to maintain or clean per manufacturer guidelines
- Consumable items including alcohol and probes
- Unauthorized modifications or repairs
Downloads & Documentation
AccuFit™ & PRO Firmware Version 2.1.5
Next Generation version of Firmware for Both the AccuFit™ and AccuFit PRO™ Models.
View / DownloadTraining Videos
Changing Parameters
Learn how to change the options in the AccuFit™ software to maximize efficiency.
View / DownloadWhat respirator types can I test with the AccuFit™?
The AccuFit™ tests most tight-fitting full- and half-face elastomeric respirators, plus NIOSH Series 99, 100, and FFP3 filtering facepiece respirators.
What testing protocols does it support?
OSHA, ANSI Z88.10, CSA Z94.4, ISO 16975-3, and HSE 282/28 protocols are all supported, including OSHA's streamlined 2019 Fast CNC protocol.
What is the warranty?
The AccuFit™ comes with a standard 3-year warranty on workmanship and materials.
What alcohol is required?
99.5%+ reagent grade isopropyl alcohol (2-propanol).
